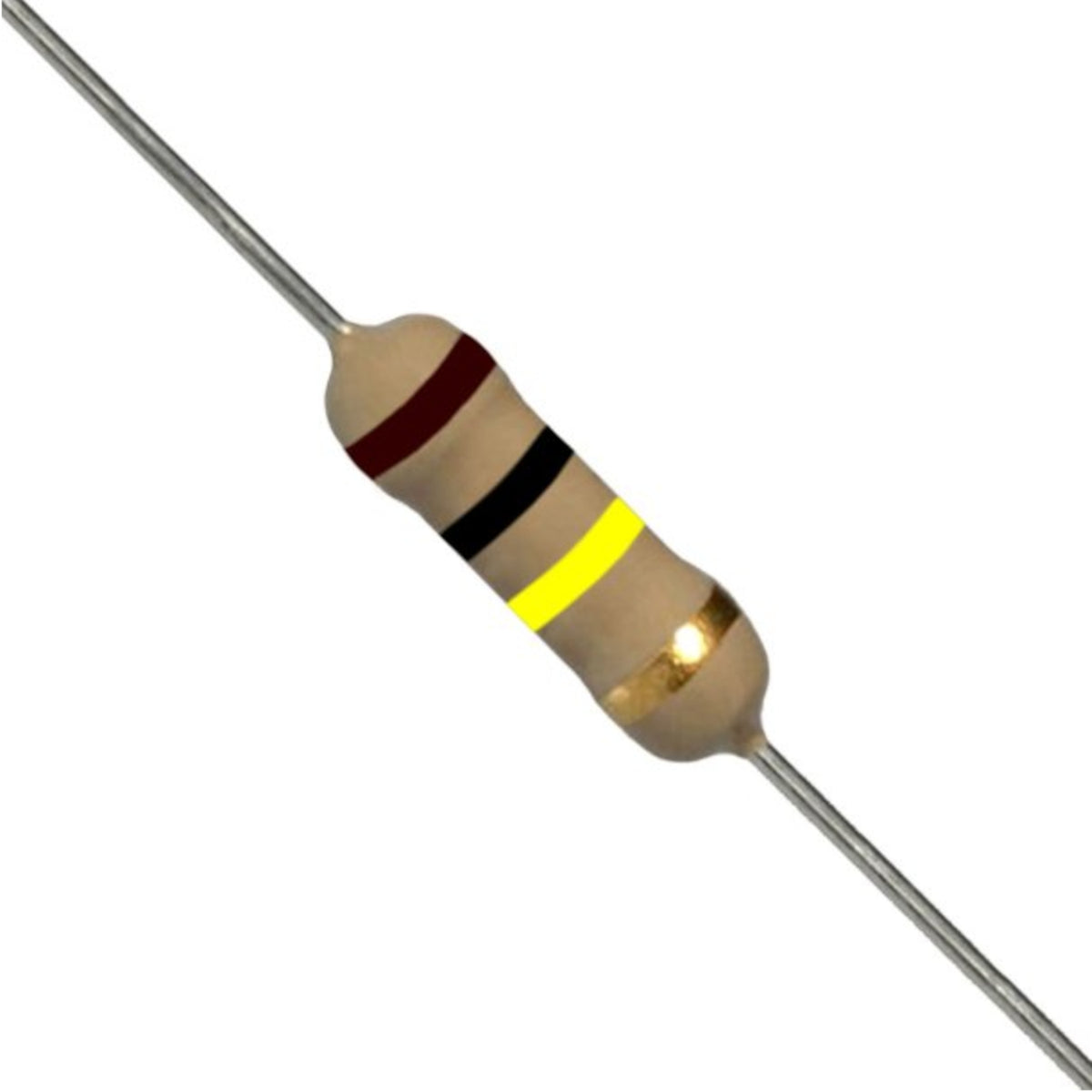

Resistor 100K Ohm 1/2W 5% Carbon Film Axial | PTH Electronic Resistor

Carbon Film Resistors 100 K ohm 1/2W 5%

100K Ohm (100,000 Ohm) carbon film resistor, ideal for general electronic applications, prototyping, and printed circuit boards. 0.5W nominal power with 5% tolerance, designed for axial PTH mounting.

The ceramic body is coated with carbon applied at high temperature. The resistive value is obtained by spirally cutting the coating. Coated in epoxy resin to ensure mechanical and electrical stability. Not suitable for high-frequency applications.

Technical specifications:

• Resistance: 100 KOhm (100,000 Ohm)
• Power: 0.5W (1/2 Watt)
• Tolerance: ±5%
• Technology: Carbon Film
• Rated voltage: 350V
• Overload voltage: 700V
• Mounting: PTH (Pin Through Hole)
• Terminals: Axial
